Rugged Outdoors | Maxtrax Recovery Kit

The Maxtrax Bush Recovery Kit is a compact, field-ready recovery solution designed specifically for tight bush tracks where space is limited and conditions can change quickly. Built around versatility and control, this kit gives you multiple rope lengths and connection options so you can adapt your recovery setup to suit whatever room you have to work with whether youre wedged between trees, stuck on a rutted climb, or pinned on uneven ground miles from anywhere.

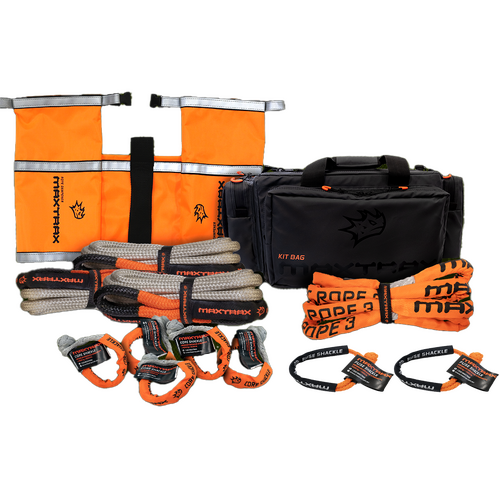

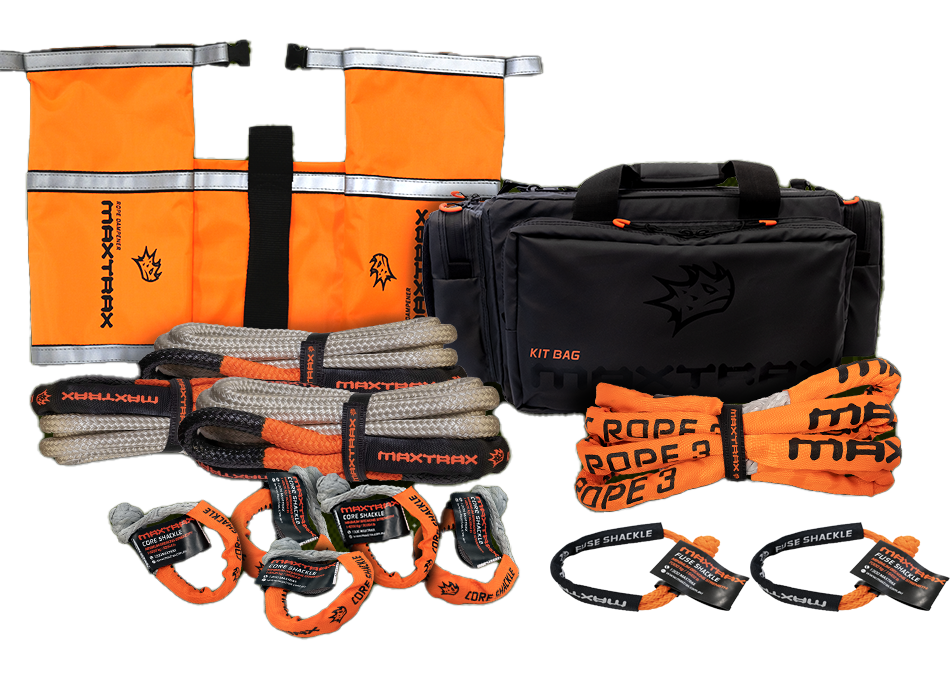

Everything is stored in the heavy-duty Maxtrax Recovery Kit Bag, designed to handle dust, mud, vibration, and constant off-road abuse. Inside, youll find a complete recovery system built for flexibility: 2 x Maxtrax Fuse Shackles, 5 x Maxtrax Core Shackles, a 2m, 3m, and 5m Maxtrax Kinetic Rope, a 3m Maxtrax Static Rope, and a Maxtrax Rope Dampener. Each component is selected to give you multiple configuration options depending on terrain and available recovery distance.

Why you need a Recovery Kit

Getting stuck in bush terrain is rarely straightforward. Space is often limited, traction is unpredictable, and natural obstacles like trees, rocks, ruts, and steep off-camber ground can prevent you from setting up a clean recovery line. In many cases, a vehicle may be high-centred, cross-axled, or positioned in a way that makes a direct pull difficult or impossible without adjustment.

In these situations, standard fixed-length recovery setups can fall short. You may not have enough room to position a recovery vehicle optimally, or the distance between anchor points may not suit a single strap or rope length. This is where a modular recovery system becomes essential allowing you to build and adjust your recovery line based on the conditions in front of you, rather than being limited by fixed gear.

In short, the Maxtrax Bush Recovery Kit is designed for environments where conditions are tight, technical, and unpredictable. It provides the flexibility and control needed to recover safely and efficiently when access and space are limited, helping you keep moving without turning a remote trip into a major recovery situation.

(MTXRKCBD)

Recovery Kit Bag

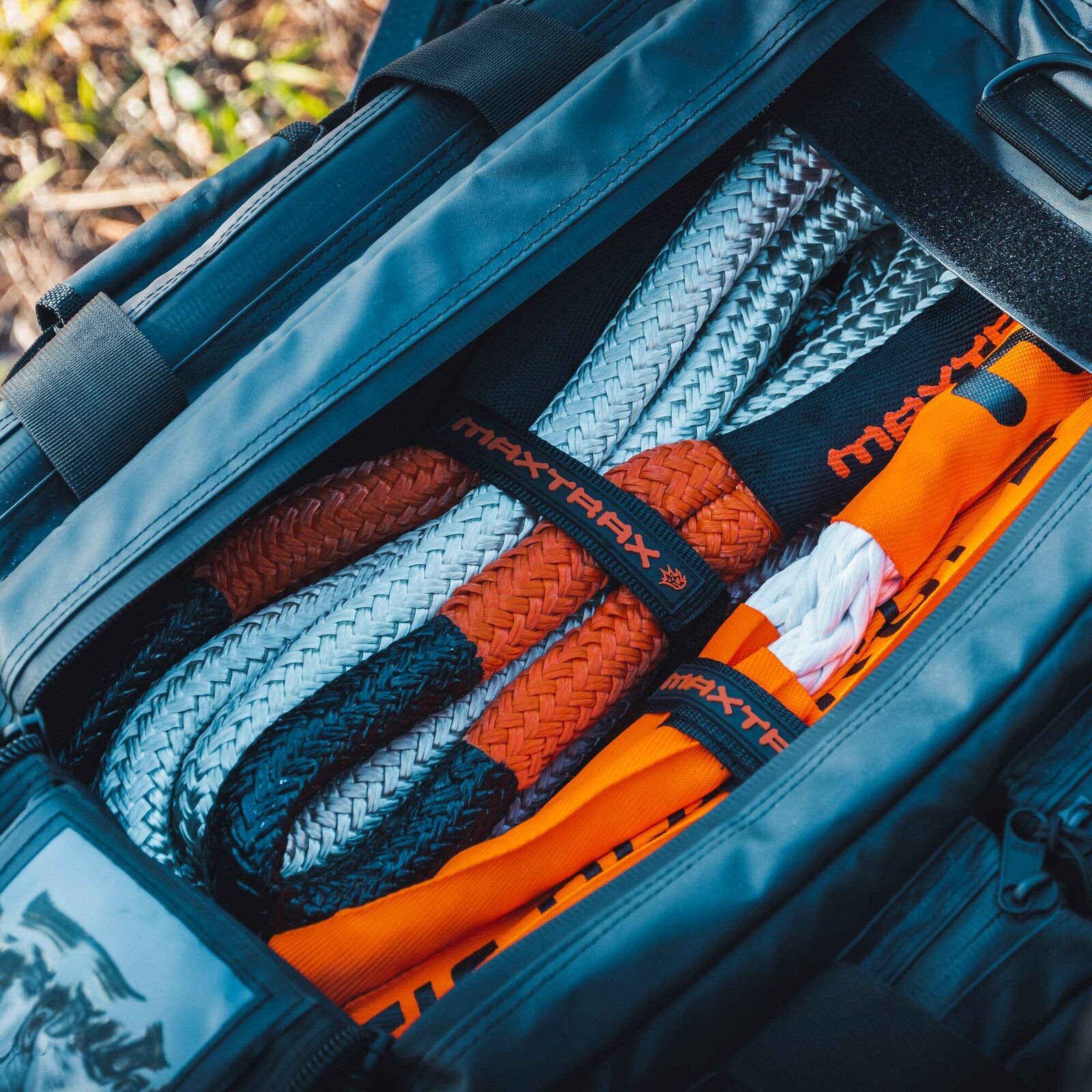

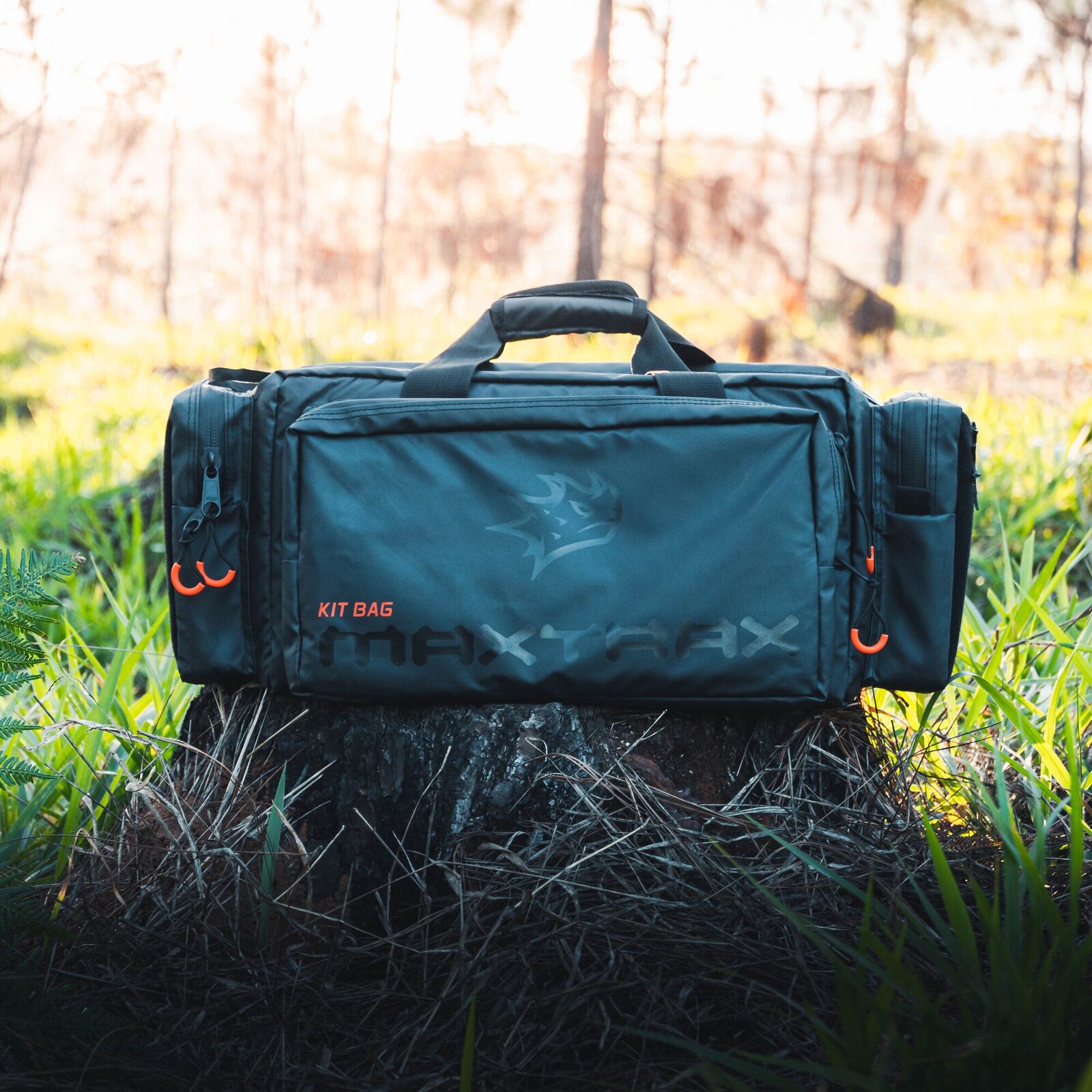

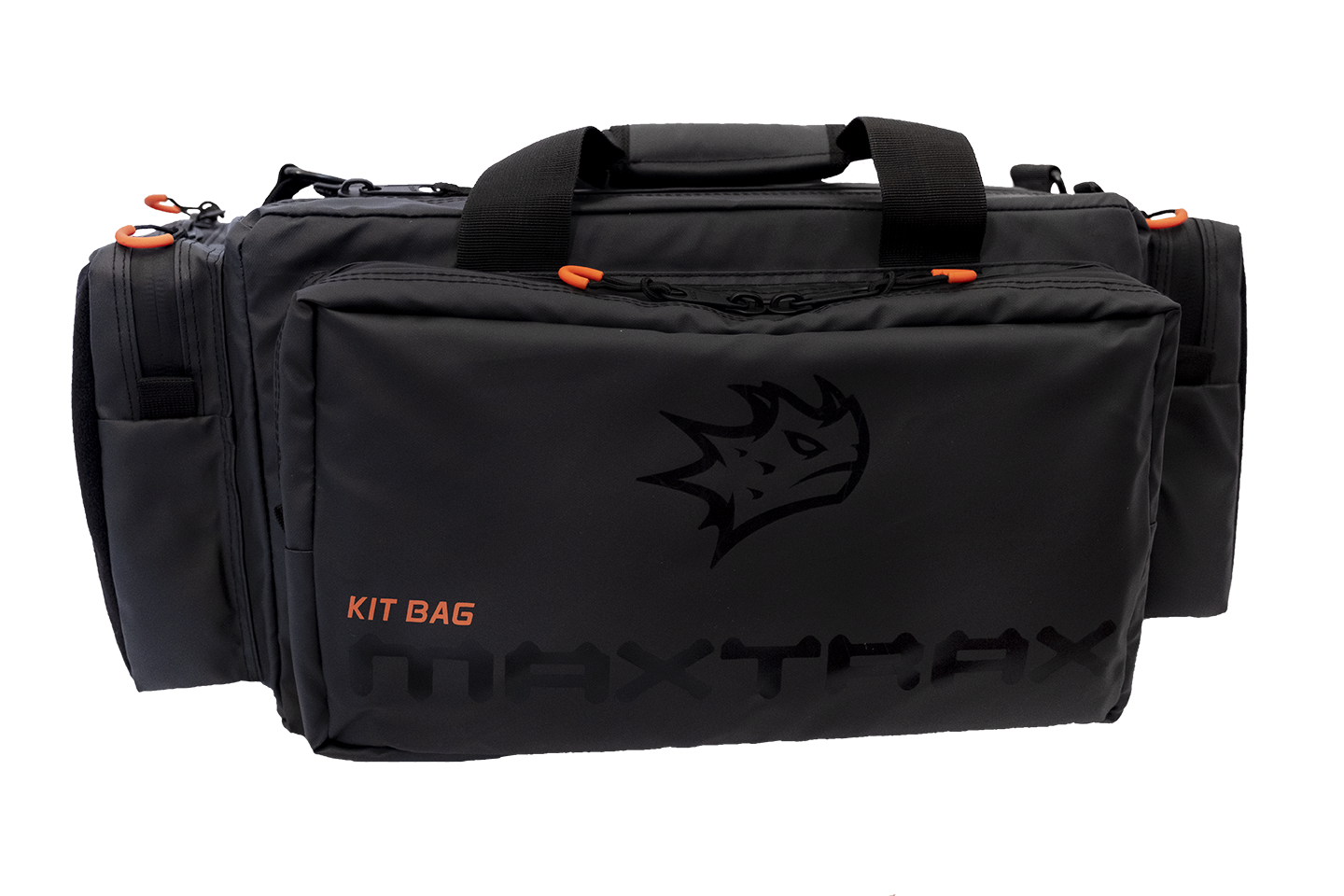

The Maxtrax Recovery Kit Bag is purpose-built to keep your recovery gear organised, protected, and ready for action in sand, dirt, snow, and everything in between. Designed and engineered as a heavy-duty storage solution, it combines practicality with durability so your Maxtrax Recovery System stays clean, secure, and easy to access when you need it most.

Built with a tough triple-layer, weather-resistant construction, this bag is made to handle harsh outdoor conditions while protecting your equipment. Inside, a large main compartment provides ample space for storing recovery ropes, while five external pockets keep essential items like shackles and the winch ring within quick reach.

For added versatility, the bag includes a removable shoulder strap, sturdy carry handles, and two external cylindrical pouchesperfect for items such as a Maxtrax Hitch or hydration bottles. Its low centre of gravity and rectangular shape make it stable, stackable, and easy to store in your vehicle or garage.

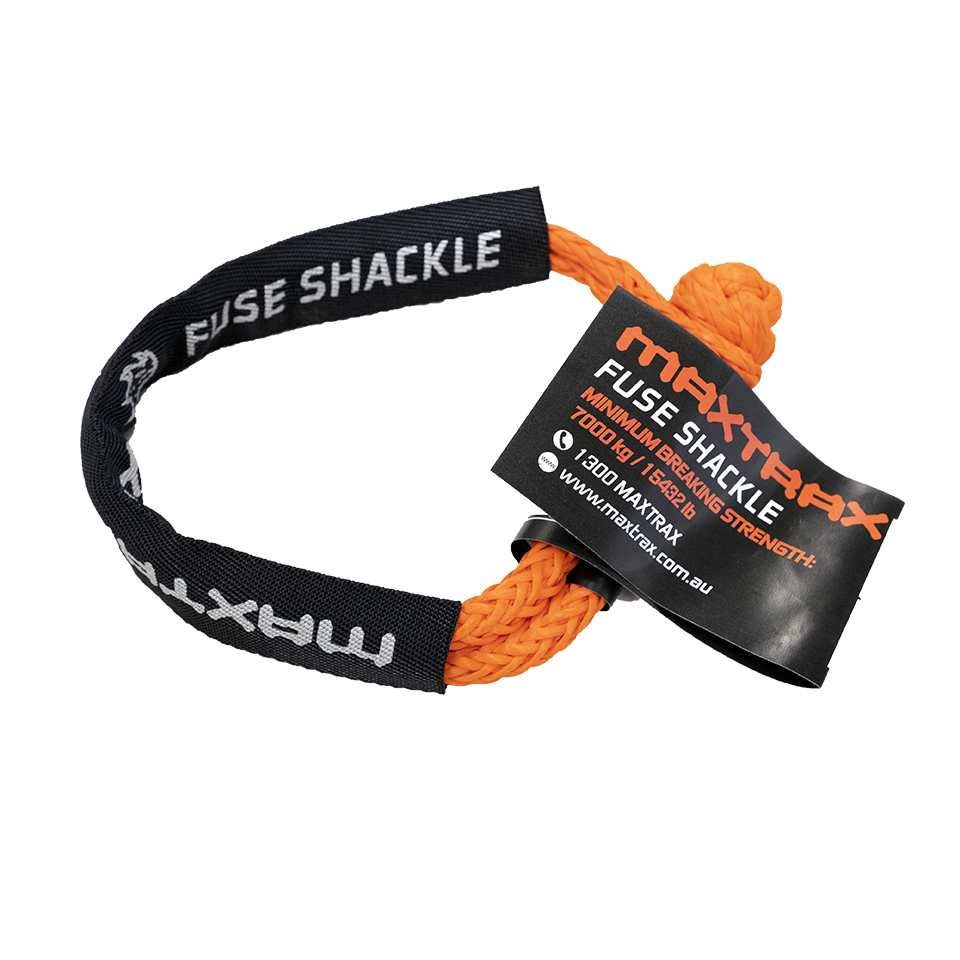

Fuse Shackle

The Maxtrax Fuse Shackle is a critical safety component designed to sit at the heart of the Maxtrax Recovery System. Built as the intentional weak link in the system, it is engineered to be the first point of failure in the event of an overloadhelping protect both your vehicle and recovery equipment during extreme loads.

As part of the fully integrated Maxtrax Recovery System, the Fuse Shackle is designed and tested to work exclusively with Maxtrax products. For safe operation, it must always be used during vehicle recoveries, and only connected to rated recovery points or compatible Maxtrax gear such as winch ropes, kinetic ropes, static ropes, or hitch systems.

Using the Fuse Shackle is simple and intuitive. Before each use, inspect it carefully to ensure it is in safe working condition. To connect, loosen the loop, pass it through your recovery point or equipment, then secure it back over the knot. When properly seated, the shackle creates a strong, secure connection designed to handle high dynamic loads while still functioning as a controlled safety release point under extreme stress.

For best practice, always combine your setup with a recovery dampener and ensure the recovery area is clear of bystanders. Begin every recovery slowly by gently taking up slack before applying load progressively if required.

Core Shackle

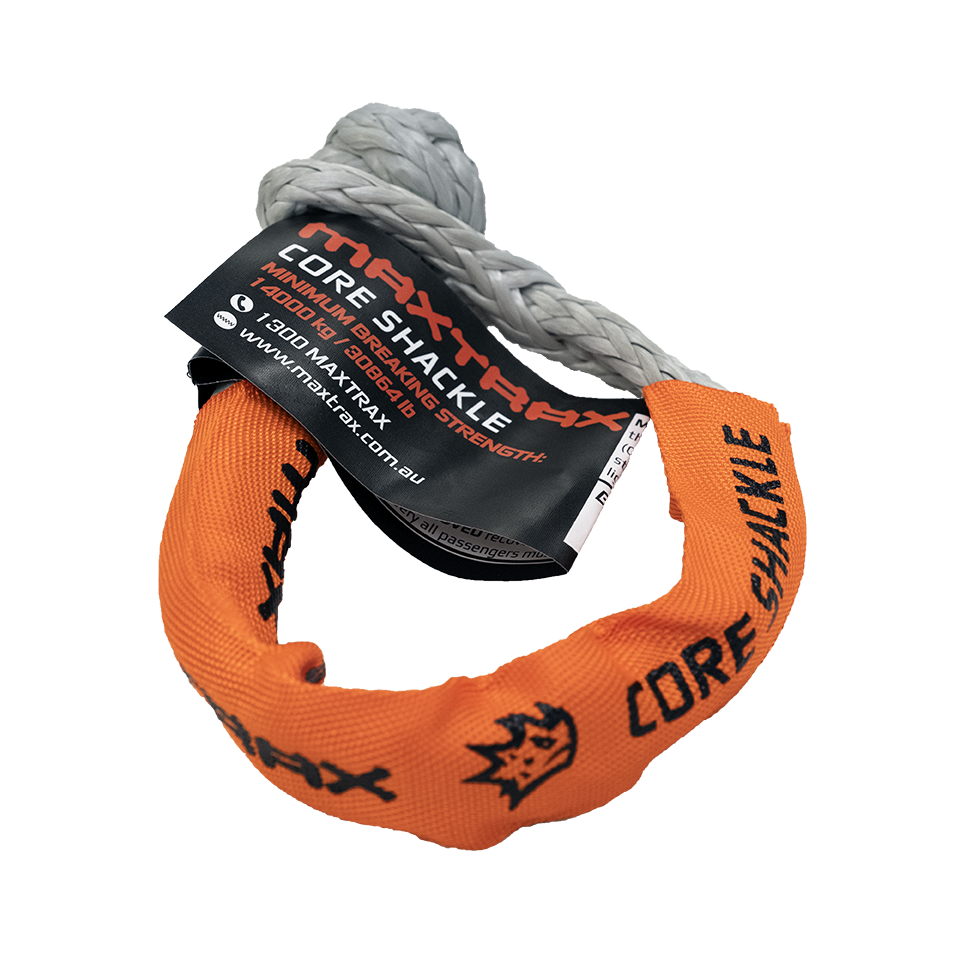

The Maxtrax Core Shackle is exactly what its name suggeststhe central connection point in your recovery setup. Designed to link key Maxtrax components together, its a lightweight, high-strength soft shackle that plays a critical role in safe and efficient vehicle recoveries. Its also purpose-built for use with the Maxtrax Winch Ring 120, making it ideal for more advanced recovery techniques like double-line pulls.

As part of the Maxtrax Recovery System, the Core Shackle is engineered and tested to work seamlessly with other Maxtrax gear. For safety, the system is designed so the Maxtrax Fuse Shackle acts as the controlled weak point in the event of an overloadmeaning it must always be included in your recovery setup.

Using the Core Shackle is quick and straightforward. Simply loosen the loop, pass it through your recovery point or equipment (such as a winch rope, kinetic rope, static rope, hitch, or winch ring), then secure it back over the knot. When tightened correctly, the shackle forms a strong, reliable connection while remaining easy to remove after use.

For best results, always inspect the shackle before use, ensure its connected to rated recovery points, and keep the recovery area clear of bystanders. Pairing your setup with a recovery dampener and recovery tracks will further improve safety and reduce load on your gear.

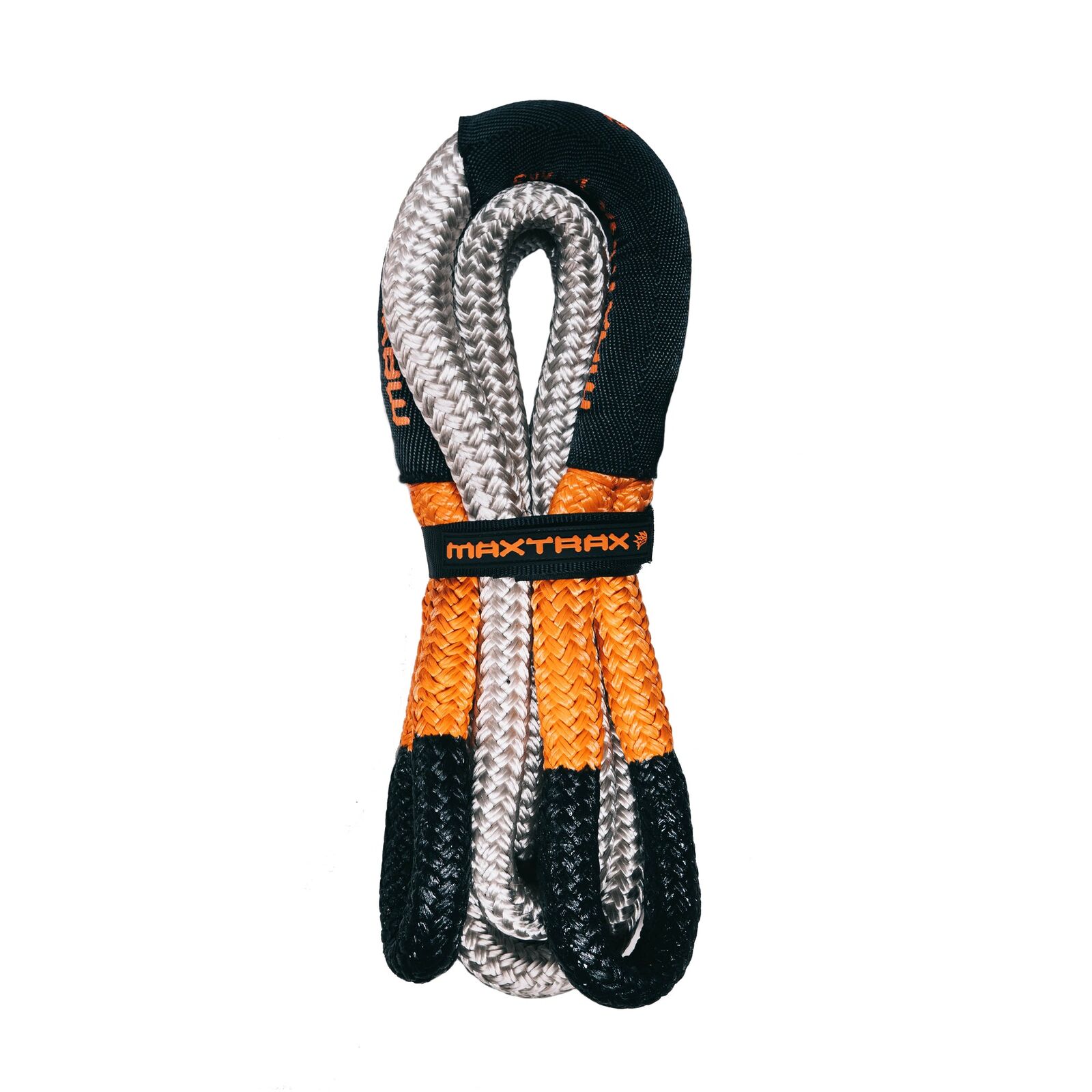

Kinetic Rope

The Maxtrax Kinetic Ropes are built to make vehicle recoveries smoother, safer, and more effective. Designed as the dynamic (stretch) element in your recovery setup, these ropes can stretch up to 30%, generating increased kinetic energy compared to traditional flat snatch straps. The result? A more controlled, less aggressive recovery thats easier on both vehicles and equipment.

Engineered and tested as part of the Maxtrax Recovery System, these ropes are designed to work seamlessly with other Maxtrax gear. For safety, the system is built so the Maxtrax Fuse Shackle acts as the controlled weak point in the event of an overloadmaking it an essential part of every recovery.

Using the Maxtrax Kinetic Rope is simple. Always inspect it before use to ensure its in good condition, then connect it to rated recovery points, a Maxtrax Hitch, or other Maxtrax ropes using a Core Shackle or Fuse Shackle. You can use a single rope or link multiple together to achieve the length needed for your recovery situation.

For best results, combine it with a recovery dampener and recovery tracks to reduce strain on your gear and improve overall safety. As always, make sure the area is clear of bystanders and begin the recovery by gently taking up slack before applying more momentum if required.

Static Rope

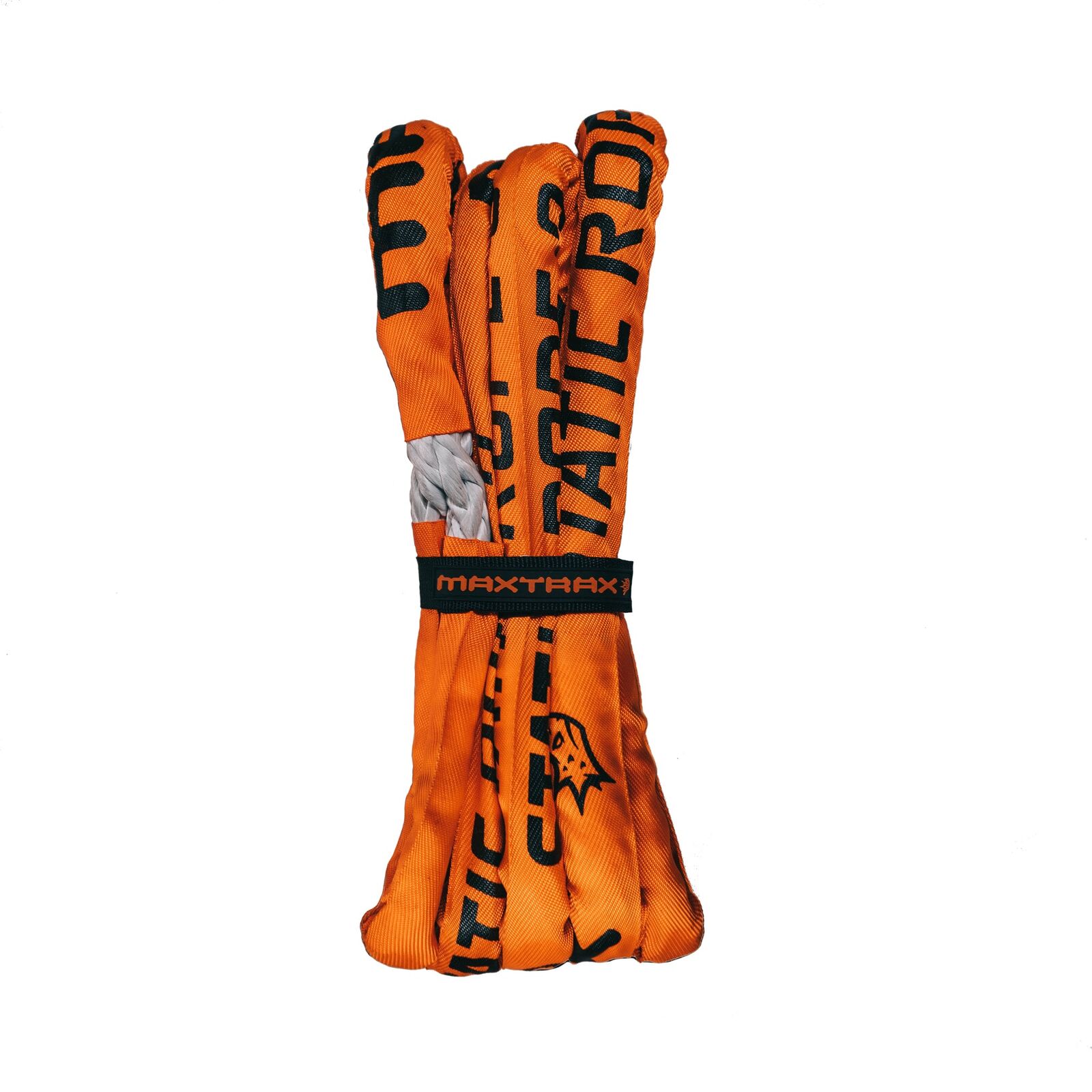

The Maxtrax Static Rope is a versatile, heavy-duty recovery essential designed to act as a non-stretch (static) component in your recovery setup. Whether youre using it as a load-sharing bridle, a tree trunk protector, or an extension strap, it delivers strength, reliability, and flexibility when you need it most.

Engineered and tested as part of the Maxtrax Recovery System, this rope is purpose-built to work seamlessly with other Maxtrax gear. For added safety, the system is designed so the Maxtrax Fuse Shackle acts as the controlled weak point in the event of an overloadmaking it a must-use component in every recovery.

Rope Dampener

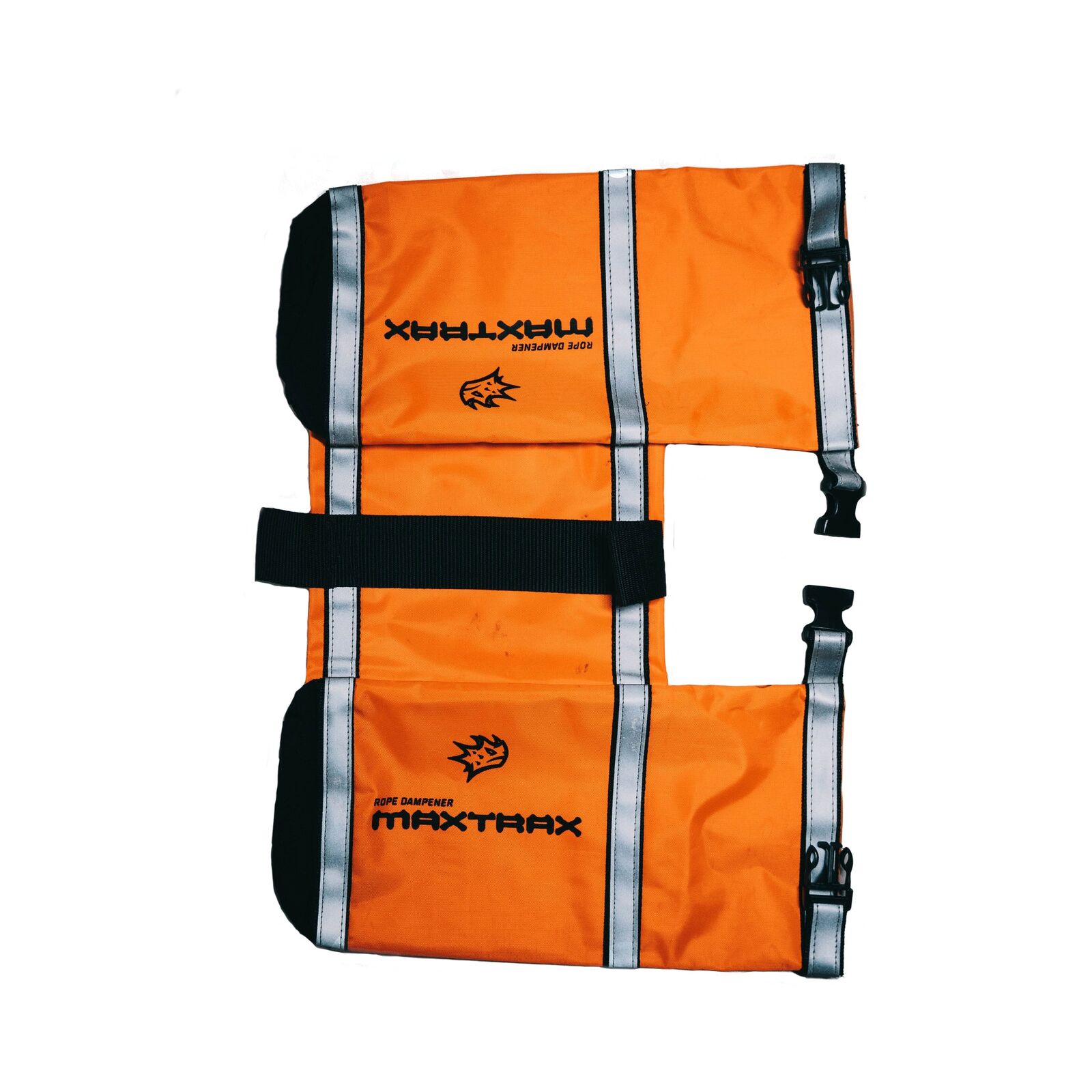

The Maxtrax Rope Dampener is an essential safety accessory designed to reduce risk and improve control during vehicle recoveries. Built as part of the Maxtrax Recovery System, it helps manage recoil forces by absorbing and weighing down recovery ropes in the unlikely event of a failure.

Engineered exclusively for use within the Maxtrax system, the Rope Dampener is designed to work alongside other Maxtrax recovery gear. For safety, the system relies on the Maxtrax Fuse Shackle as the controlled weak point in any overload scenario, and it must always be used during recoveries.

Simple and practical to use, the Rope Dampener is positioned near the Fuse Shackle and draped over the connected recovery rope. It can also be attached directly using a Fuse Shackle. Before use, it should be filled with weighted material such as sand or water bottles, then secured by folding and fastening the sleeves to keep the load in place.

Once installed, the dampener sits over or hangs from the recovery line, helping to reduce movement and recoil risk during tensioned recoveries. For best results, always ensure it is correctly positioned close to the primary connection point in the system.
