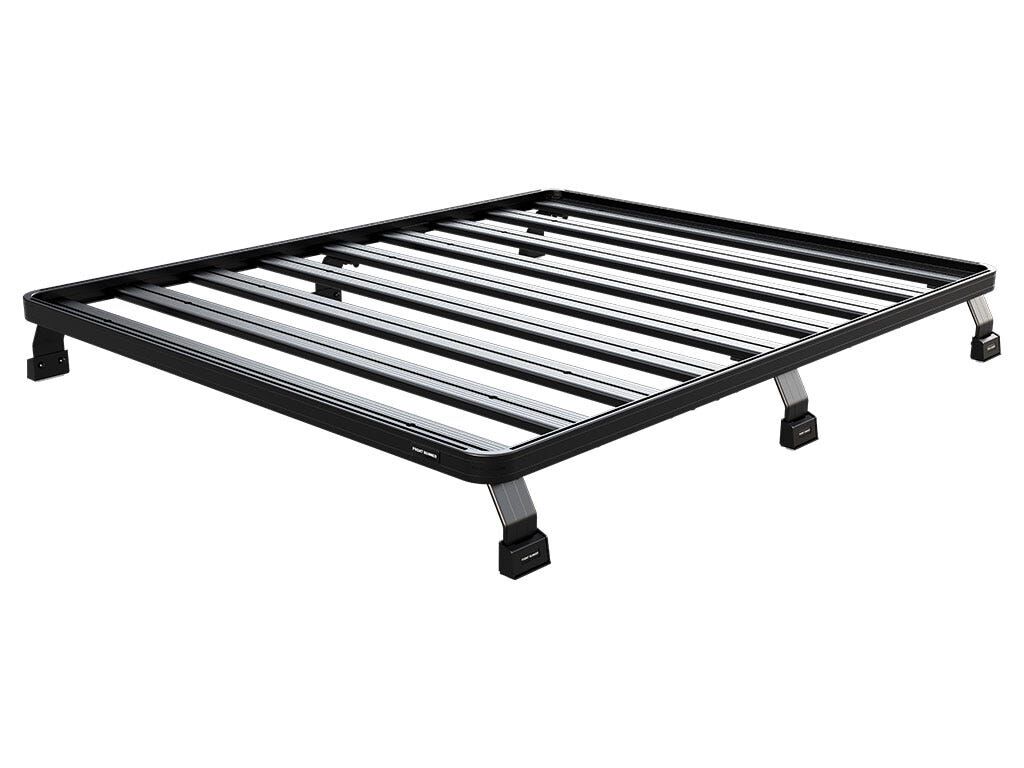

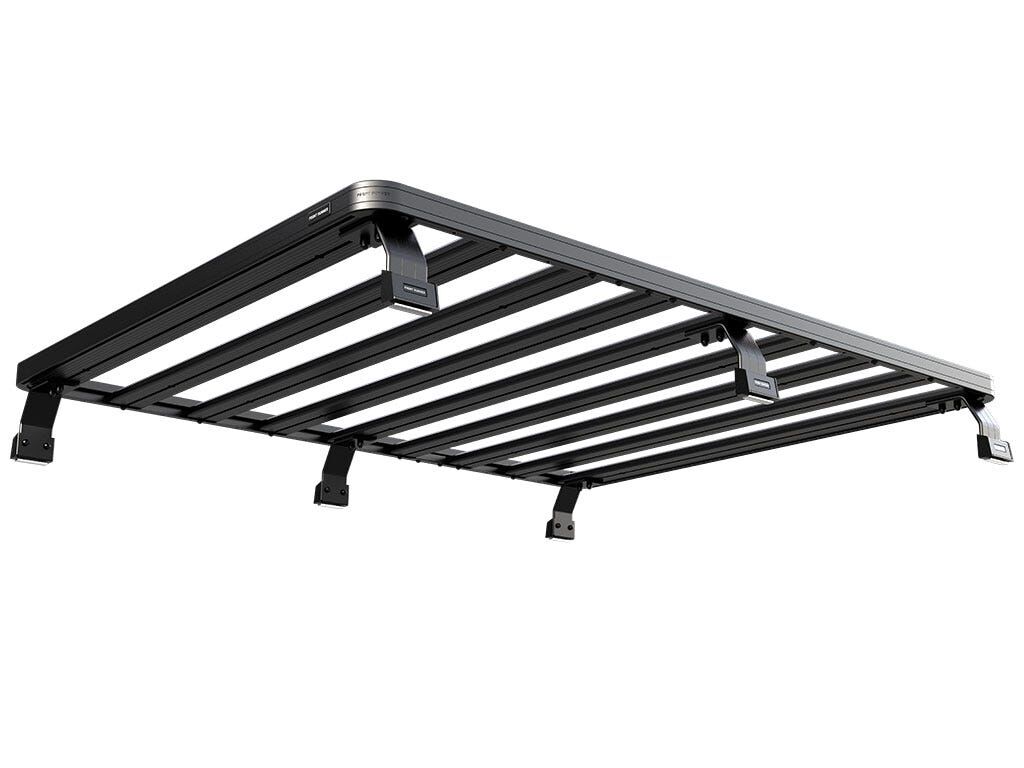

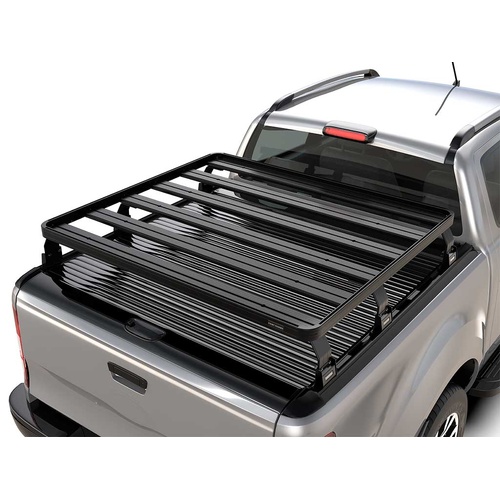

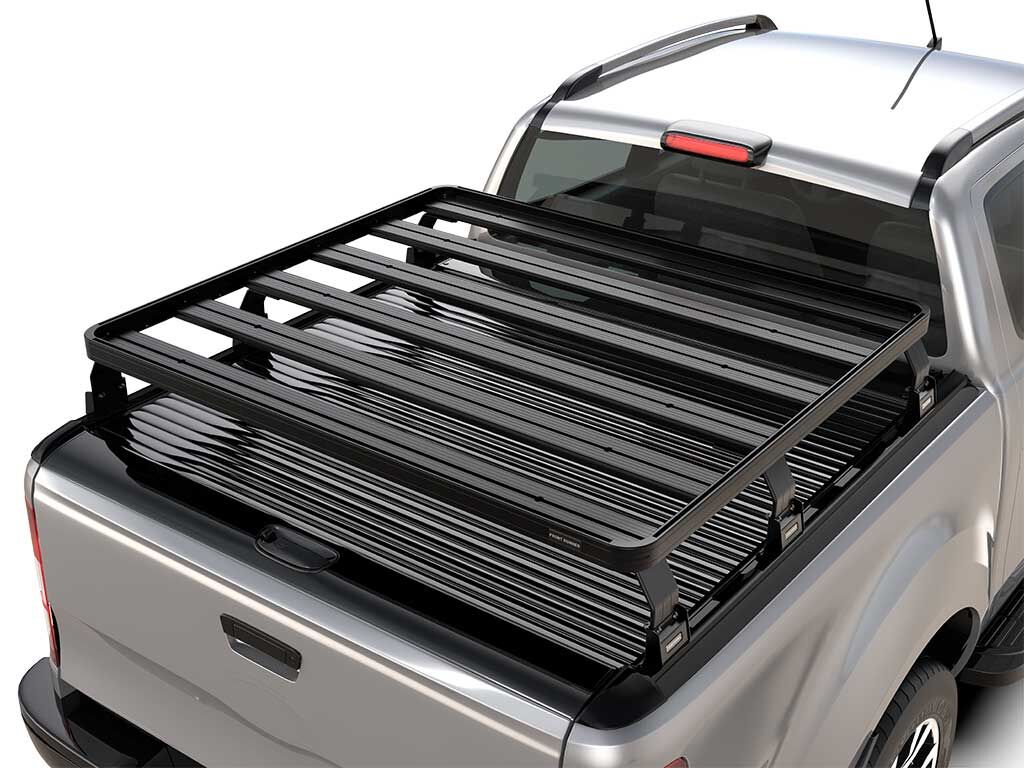

This kit creates a full-size rack that sits above your Ute's load bed when fitted with a Roll Top Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1762mm) and 6 Ute Roll Top Leg Mounts that fit into the existing factory/OEM tracks in your Roll Top Cover.

(KRRT005T)

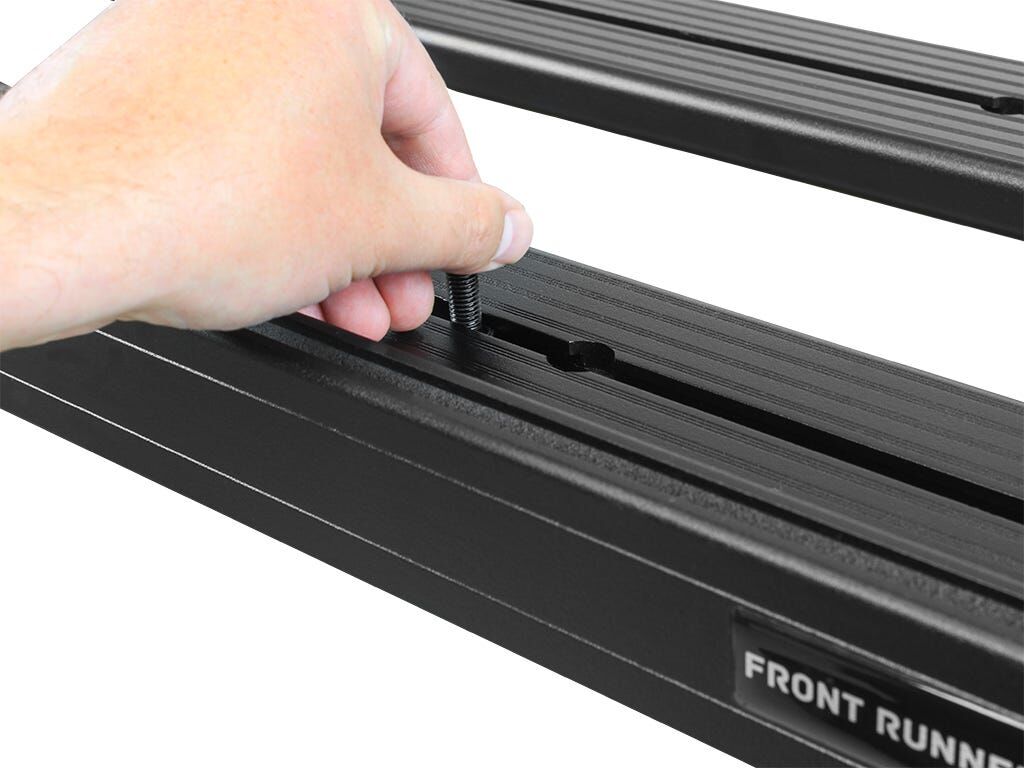

KRRT005T - Bakkie Roll Top Slimline II Load Bed Rack Kit / 1425(W) x 1762(L) - by Front Runner Consisting of: 3x LASS028 - Pick-Up Roll Top Leg Mount1x RRSTJ09 - SLII Tray - 1425mm(W)X1762mm(L) Material Used: Black epoxy powder - coated T6 aluminium High strength steel Approximate Installed Weight: 34.42kg (75.88lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof. Shipping Dimensions: Width: 455mm (18'') Length: 1730mm (68'') Height: 235mm (9'') Shipping Weight: Weight: 34.59kg (76lbs)
SKU KRRT005T
Model # KRRT005T
Barcode # 6009542261881
Brand Front Runner Outfitters
Shipping Weight 34.6000kg
Shipping Width 1.730m
Shipping Height 0.235m
Shipping Length 0.455m
