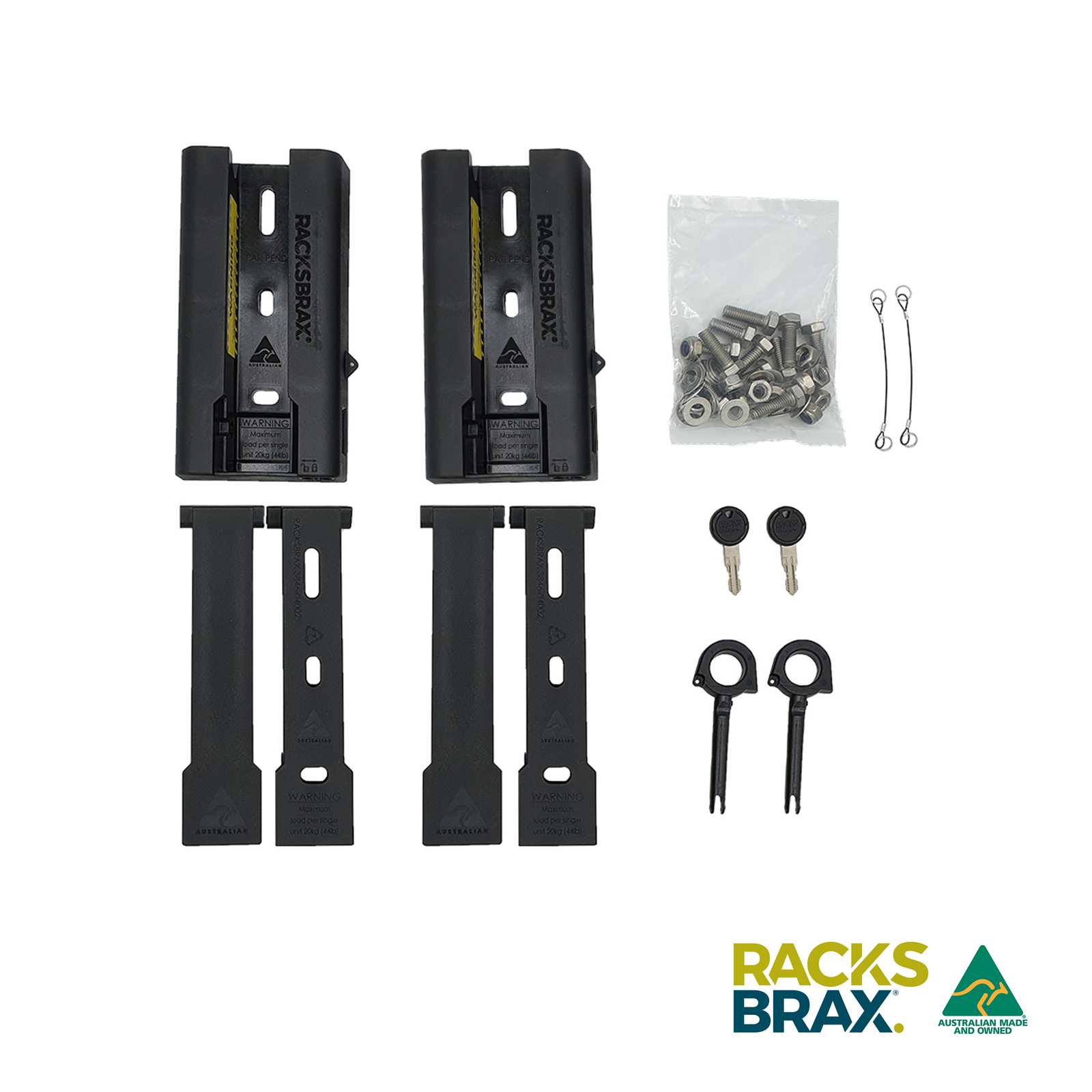

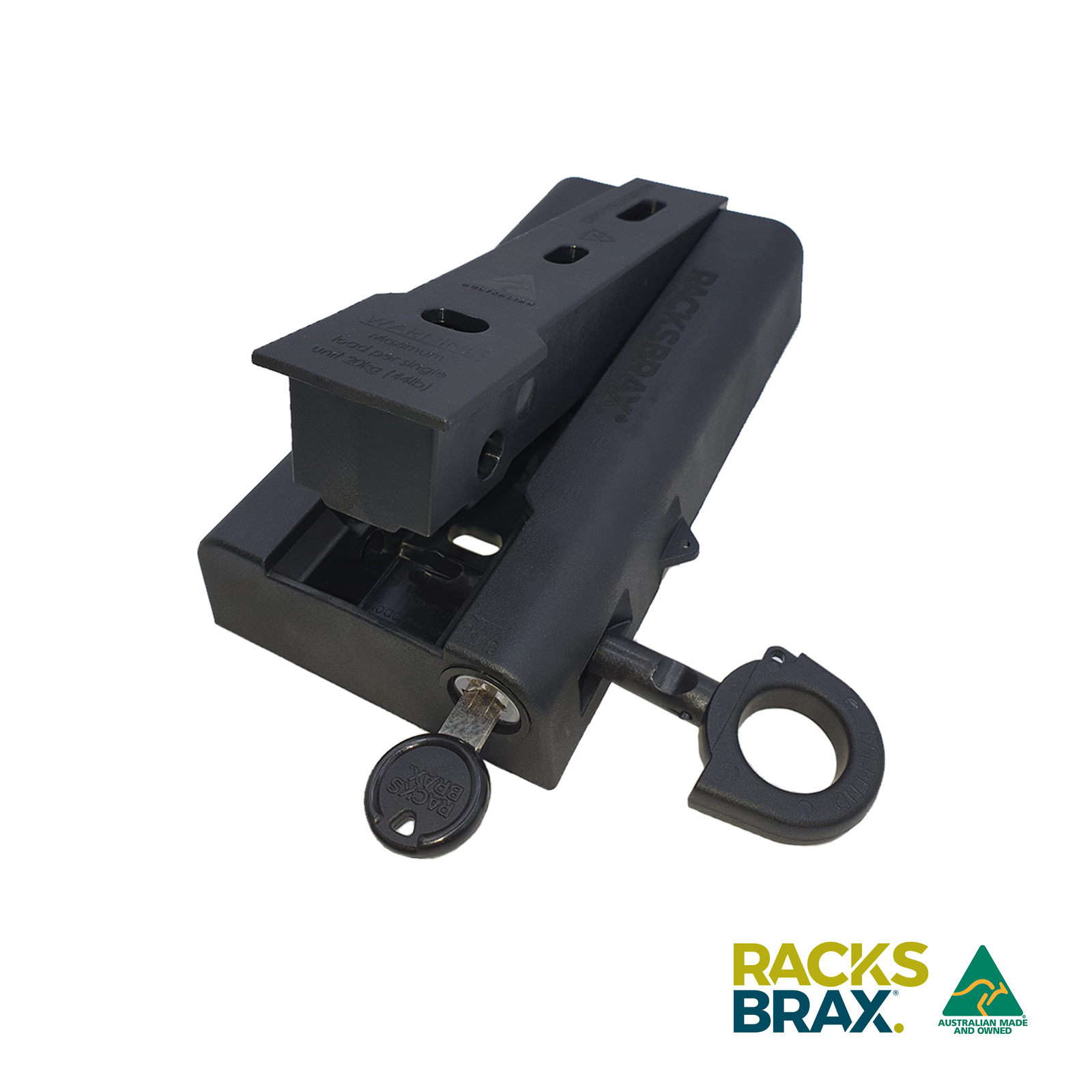

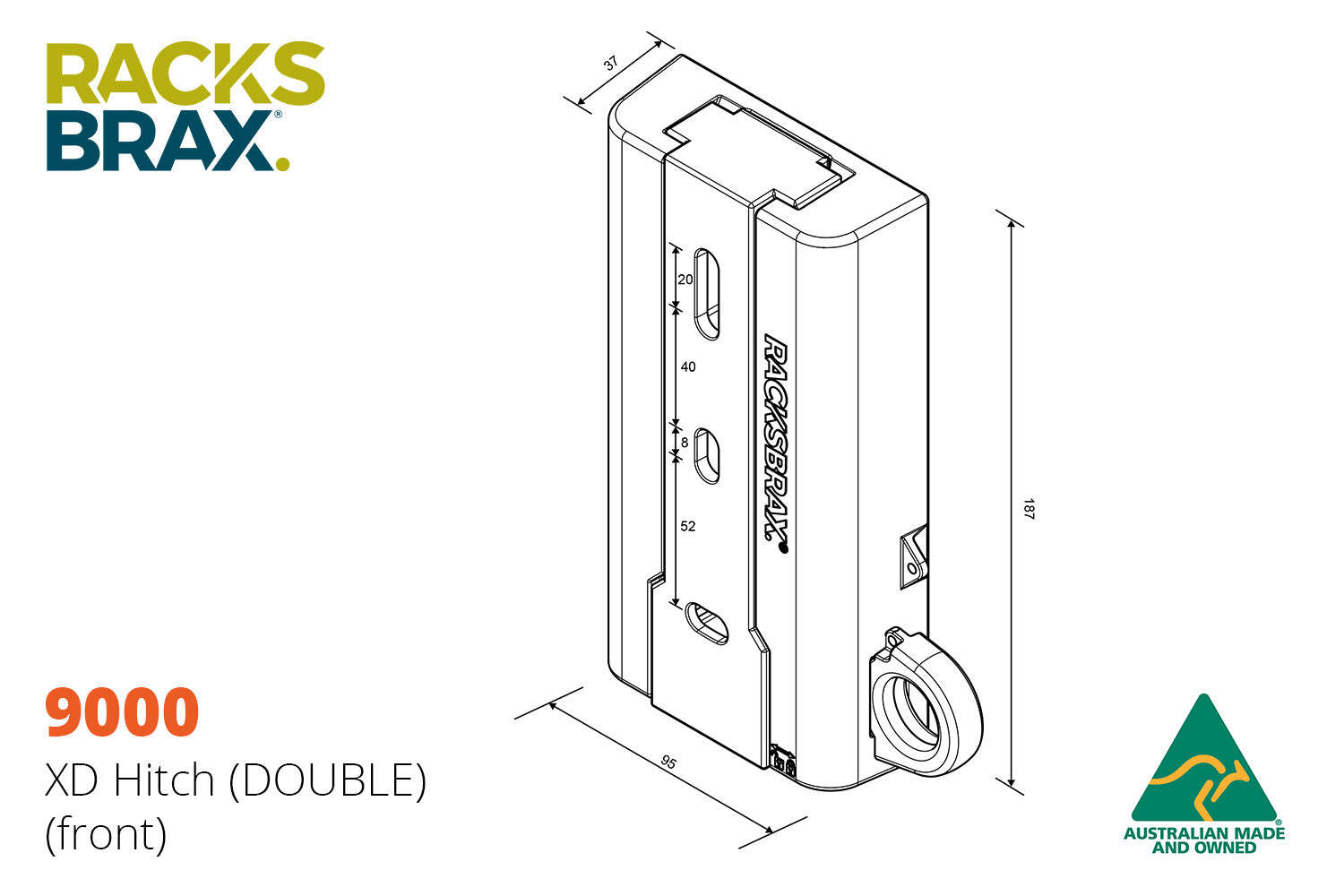

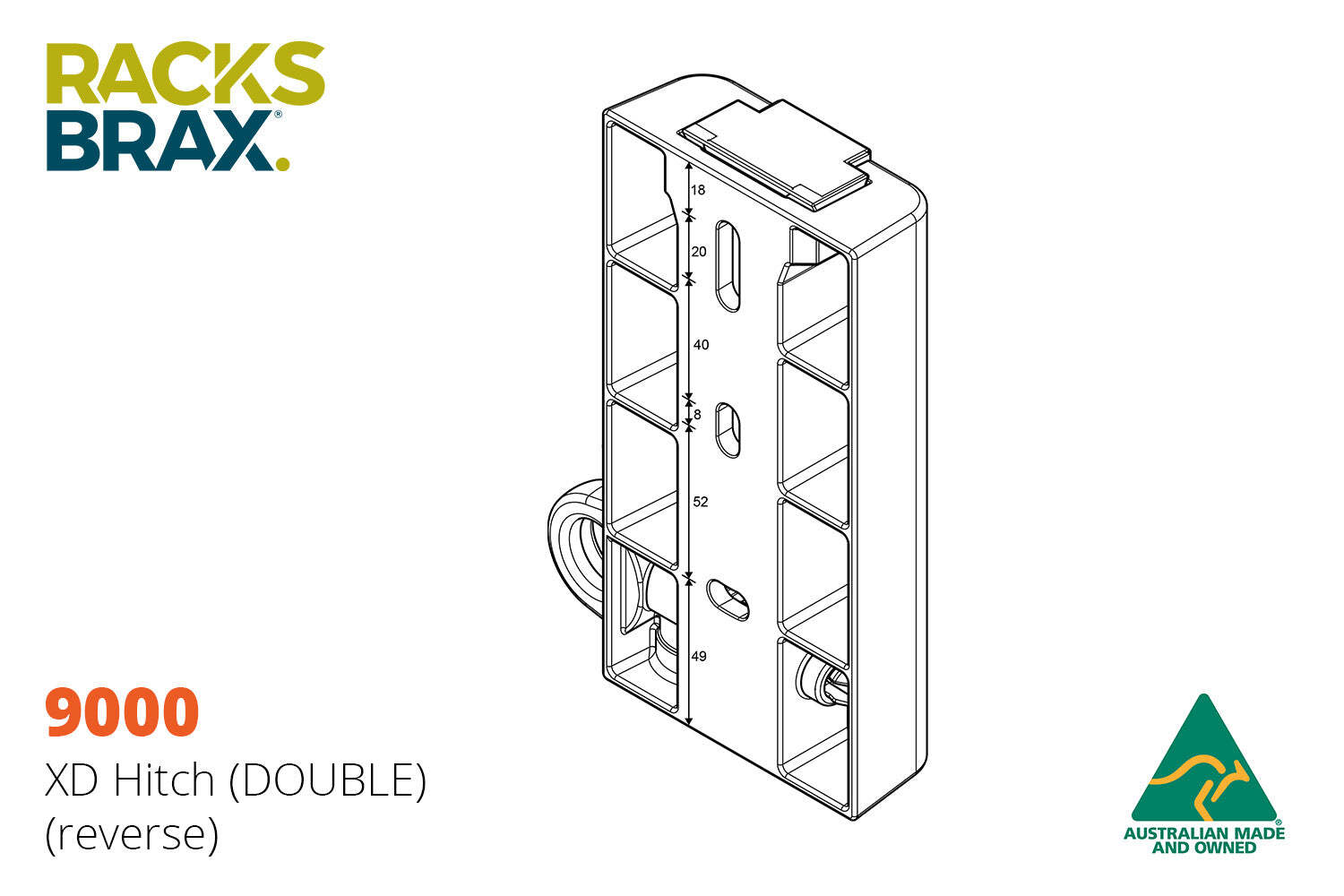

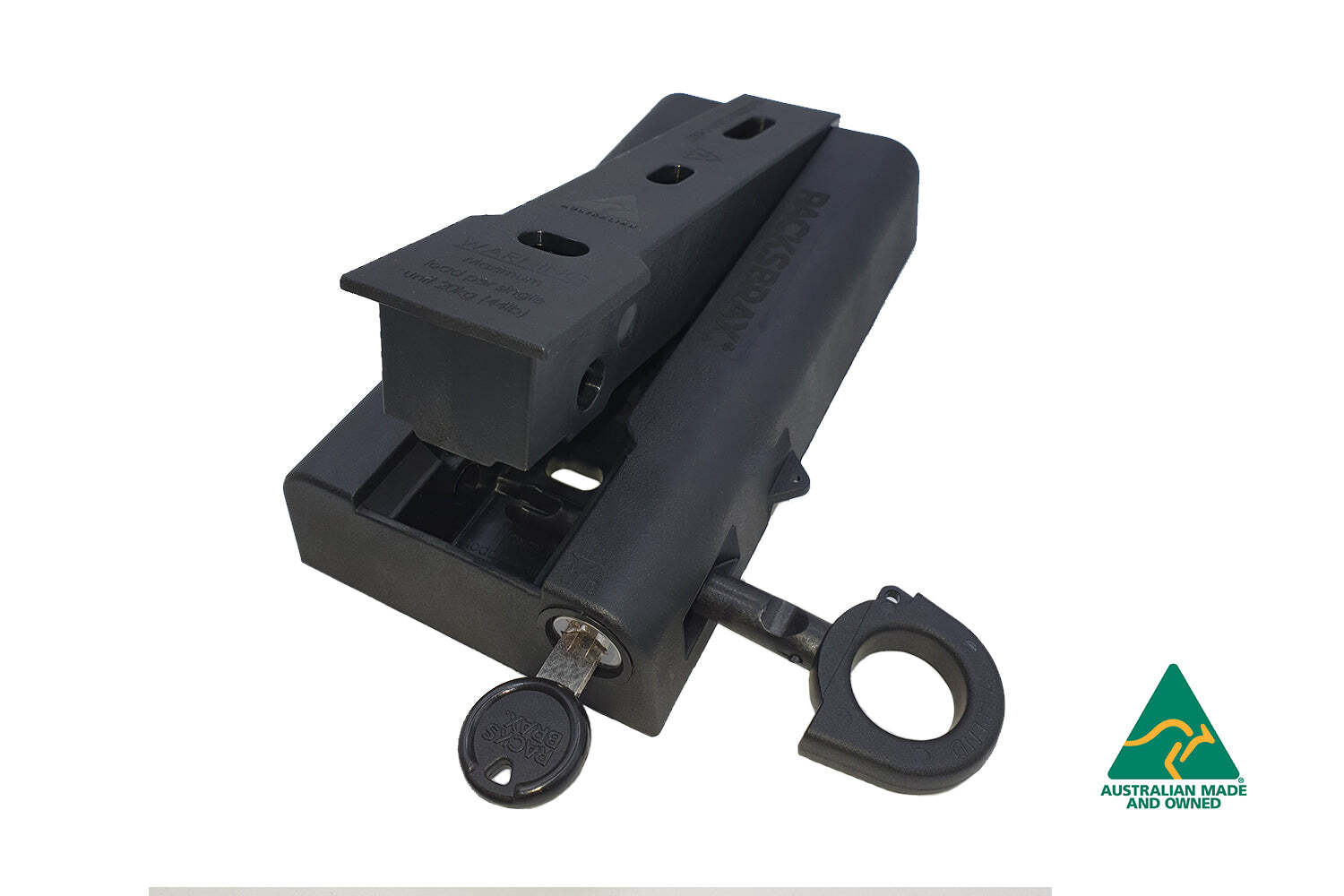

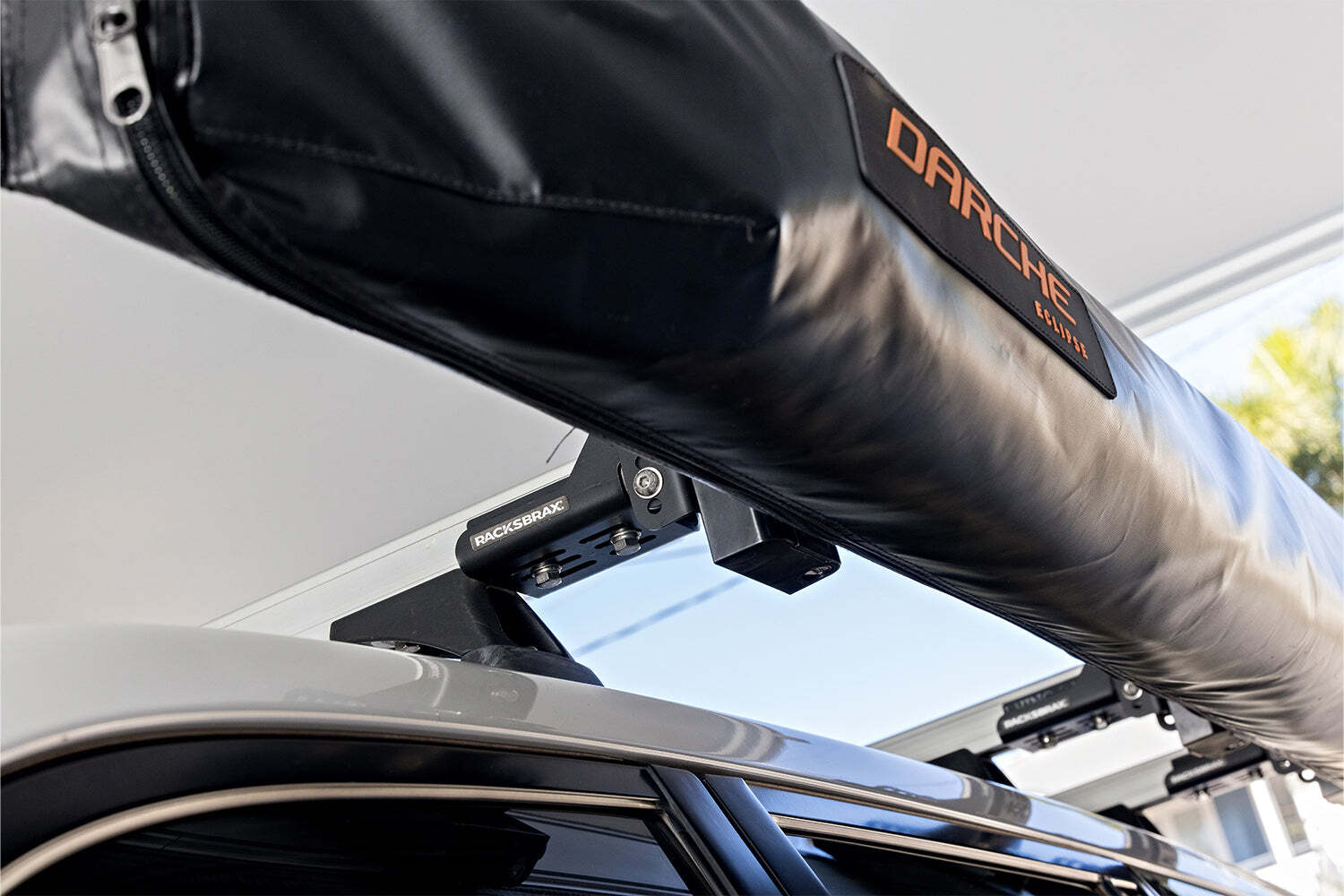

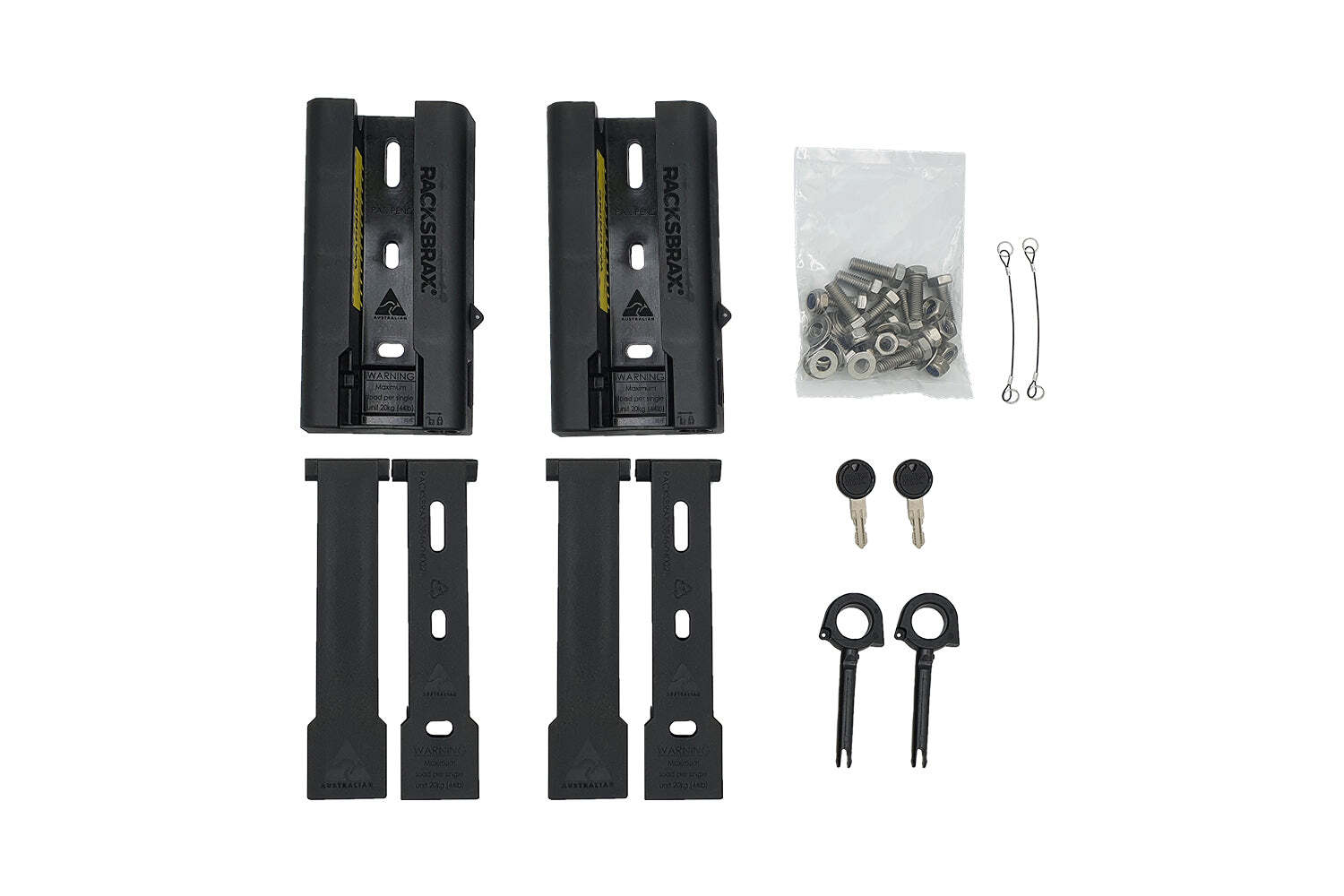

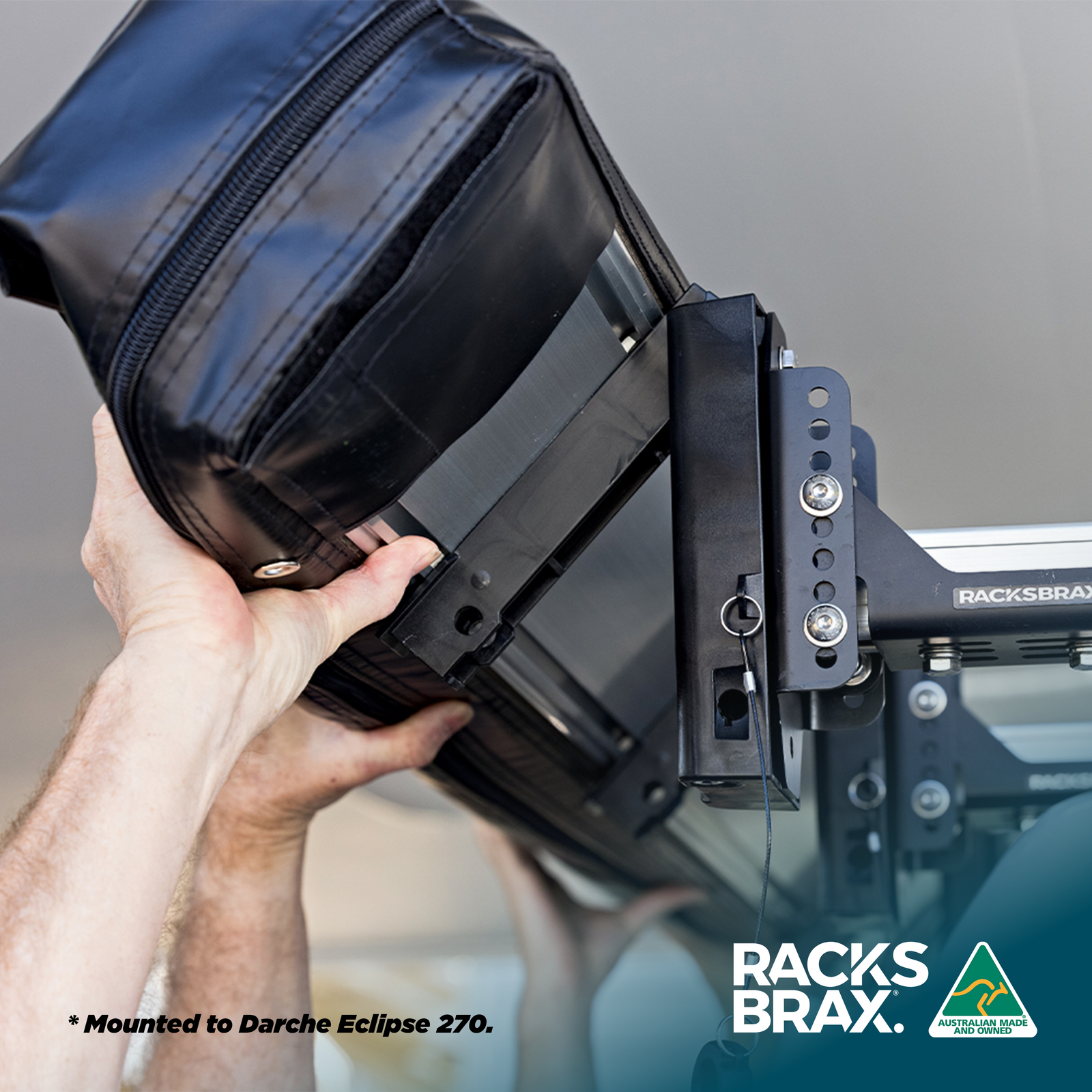

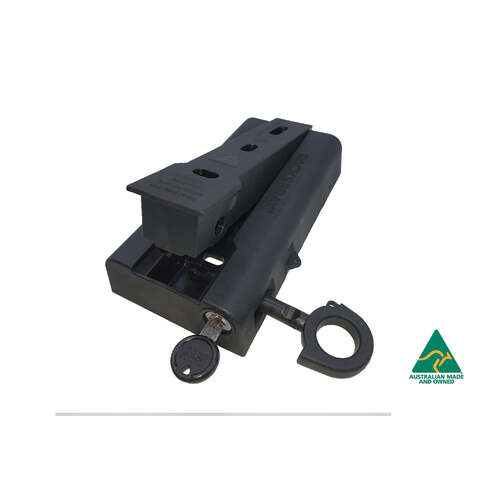

The XD Hitch (Double) (9000) is part of the RacksBrax XD range and is designed for securely mounting and quickly removing wing-style awnings. It suits awnings with spine track spacings between 100–120mm and is configured for two mounting points (for example, one vehicle and one awning/accessory connection).

With a maximum recommended load of 40kg (20kg per loading point), the Double pack is ideal for most standard 180°, 270° and 360° wing awnings. It fits a wide range of major brands and is also compatible with Ostrich Wing awnings when using the supplied Slider Bracket. If your awning is not listed in our compatibility guide, our team can assist with confirmation.

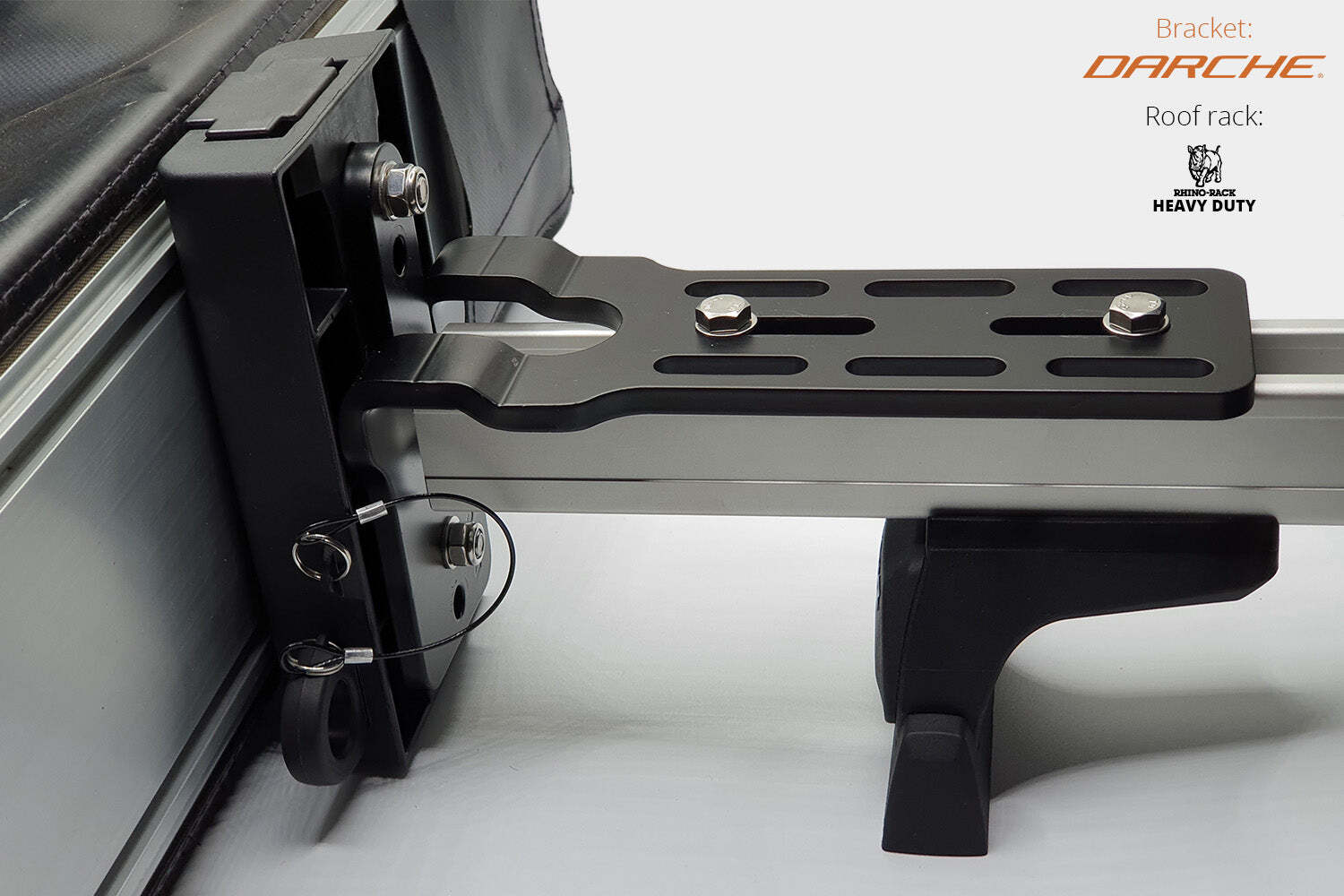

The XD Hitch integrates seamlessly with the full RacksBrax XD accessory range, including the XD Wall Mount and XD Lockable Wall Mount for garage storage, the XD Multi-Awn Adaptor for fast awning removal, the XD Awning Connector for expanded compatibility with select awnings, and the XD Bracket range for connection to most roof bar and platform-style racks.

Find the Right Fit

Find the perfect fit for all your favourite 4x4 accessories with the RacksBrax Pocket Guides, your quick and easy reference for compatibility and setup. Explore the guides here to make sure you get the right gear the first time.

What is the difference between the HD Hitch and XD Hitch?

RacksBrax HD Hitch

Hitch Holder Compatibility

• Works with pull-out awnings, shower tents and roof rack accessories
• Suits mounting points between 40–52mm apart

Hitch Body

• Maximum load per single unit: 20kg
• UV-stabilised glass-reinforced nylon construction

Fast & Easy Installation

• On or off in seconds
• Easy storage to protect accessories from sun and moisture damage
• Reduces wind drag and improves fuel consumption

Compatibility with RacksBrax Range

• Use with HD Awning Adaptor Plates or HD Accessory Bars
• Suits wing awnings with mounting points between 80–105mm
• Compatible with HD Wall Mount 8160
• Compatible with HD Lockable Wall Mount 8161

Hitch Pin with Lock

• In-built barrel locks for security

Engineered Tough in Australia

• Proudly Australian Made

Warranty

• 5-Year warranty (conditions apply)

RacksBrax XD Hitch

Hitch Holder Compatibility

• Works with 180° and 270° awnings
• Works with roof rack accessories
• Suits mounting points between 100–120mm apart

Hitch Body

• Maximum load per single unit: 20kg
• UV-stabilised glass-reinforced nylon construction

Fast & Easy Installation

• On or off in seconds
• Easy storage to protect accessories from sun and moisture damage
• Reduces wind drag and improves fuel consumption

Hitch Pin with Lock

• In-built barrel locks for security

Engineered Tough in Australia

• Proudly Australian Made

Warranty

• 5-Year warranty (conditions apply)

*Roof racks and mounting brackets are not included.

*Awnings must be restrained in windy conditions, drained during rain and cleared during snow.
