Hardkorr’s 30A 6-stage PWM smart solar regulator is tough as nails and designed to work perfectly with our range of 12v solar panels.

This smart regulator will optimally charge a range of battery types, including AGM, Gel, Calcium, Wet and all common lithium variants including LiFePO4 and Li-ion. It contains a host of smart electronics including reverse polarity protection, short circuit protection, reverse current protection, overcharge protection and more.

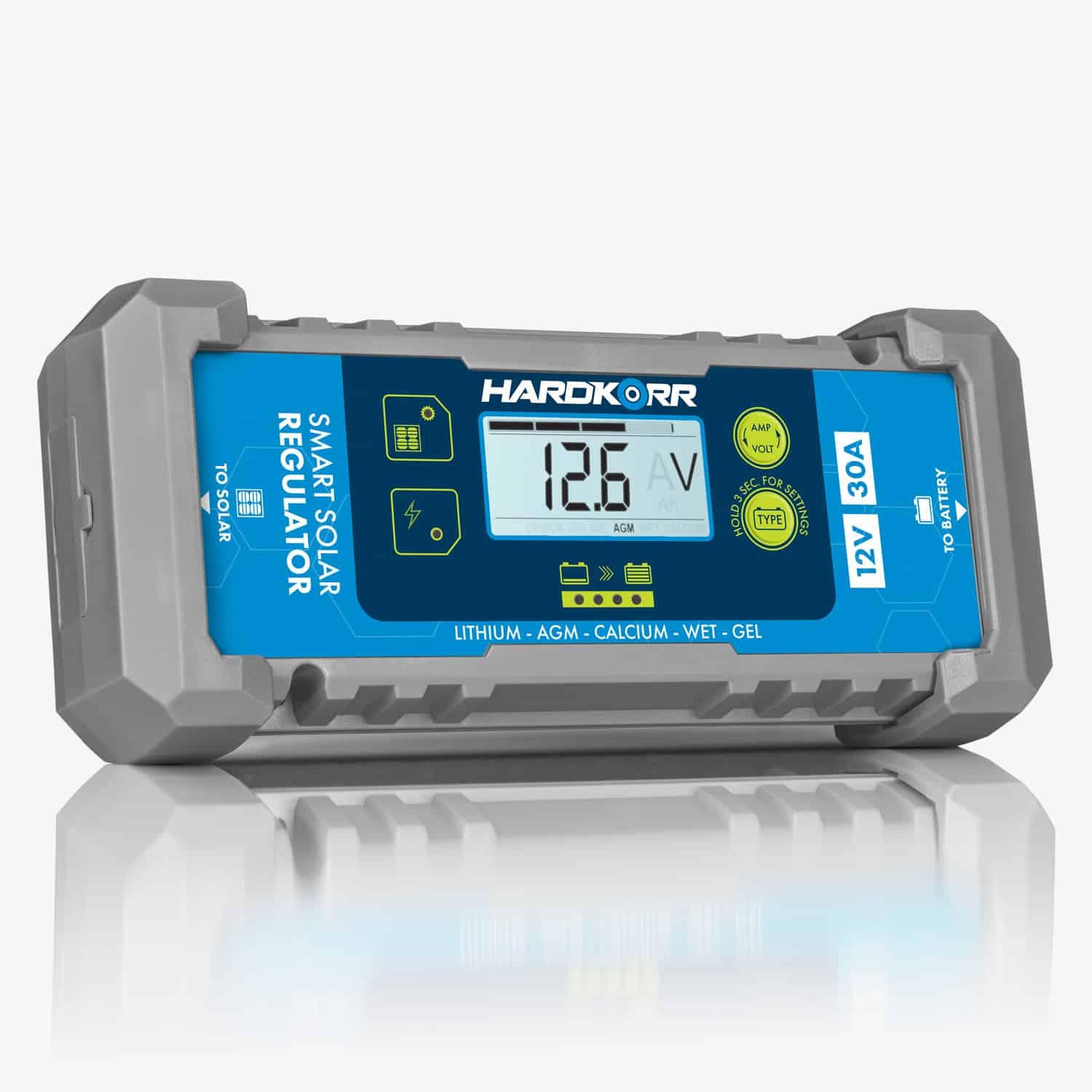

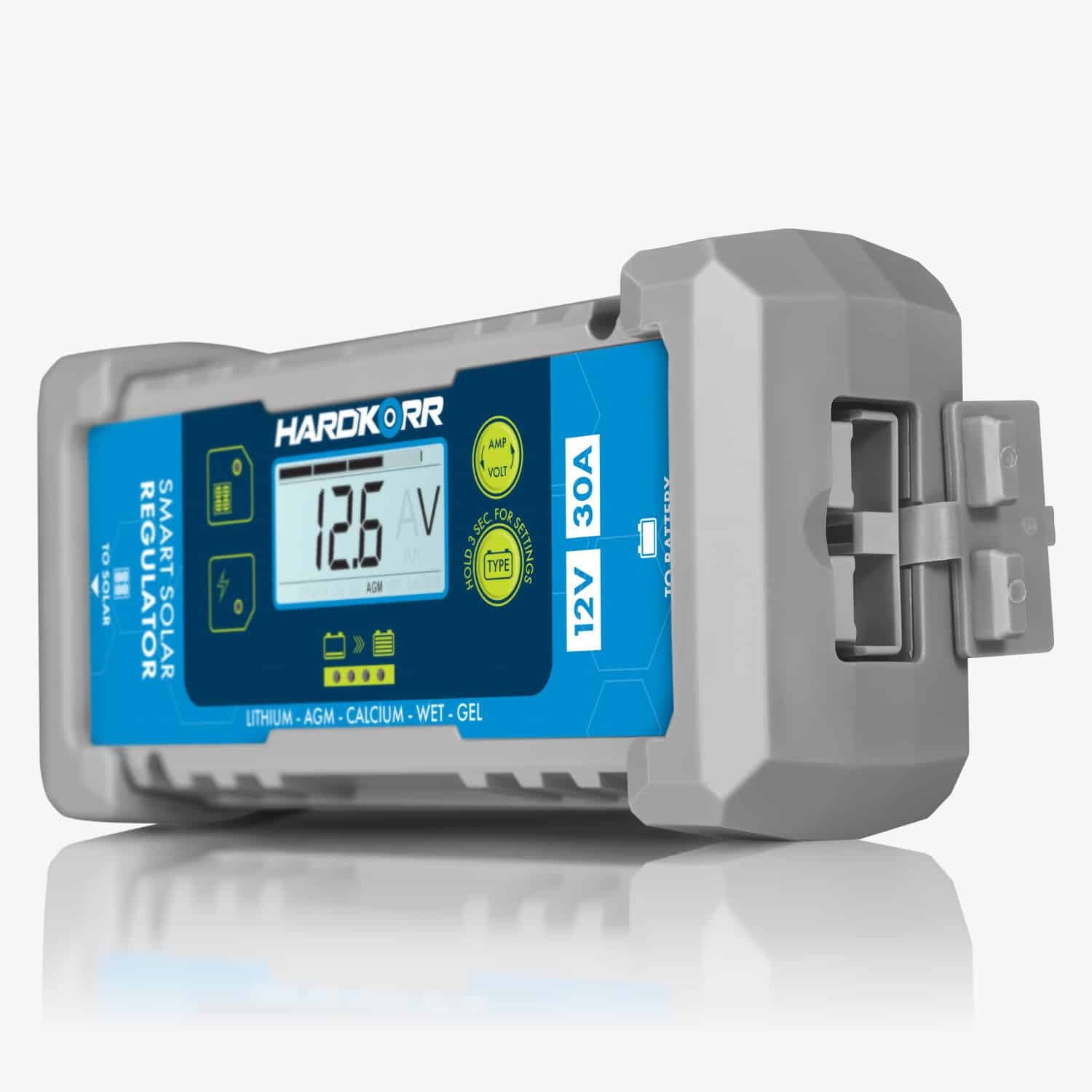

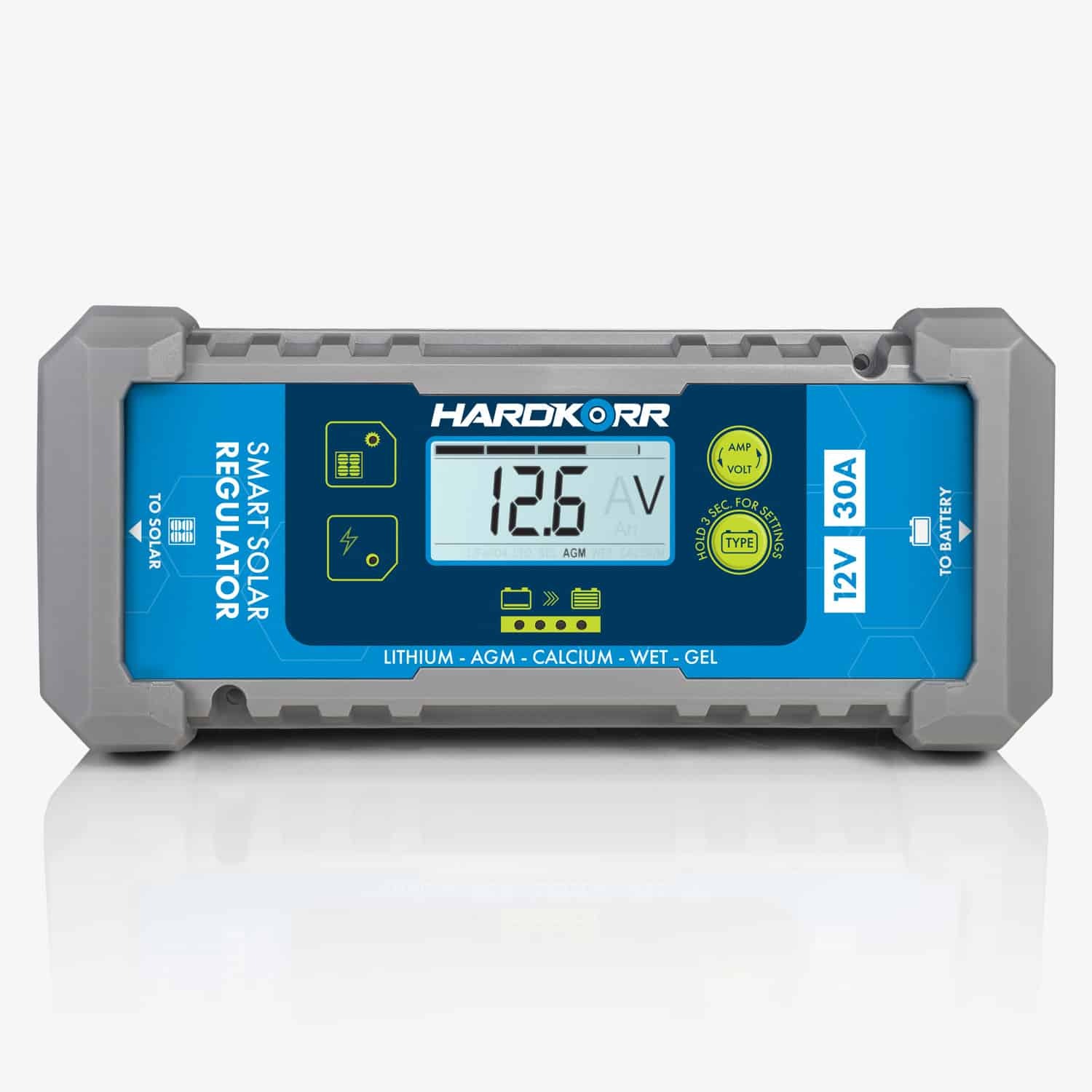

Its large, backlit LCD screen provides useful information relating to power input and battery charge level, and inbuilt LEDs provide a quick-reference indicator of battery charge status.

It also contains smart re-activation technology, which gives it the ability to wake up a “dead” lithium battery where the BMS over-discharge protection circuit has been tripped. Simply connect the regulator to the battery and it will deliver special small-current pulses until the battery has recovered enough to be charged normally.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 2 Year Australian warranty.


  • Compatibility
    • Compatible with all common batteries, including AGM, Gel, Calcium, Wet, LiFePO4, and Li-ion.
  • Advanced Algorithm
    • 6-stage charge program capable of optimally charging batteries from under 5V.
  • Smart Reactivation
    • Automatically senses when a lithium battery's BMS over-discharge protection circuit has been tripped and can wake it up.
  • Electronic Protections
    • Reverse polarity protection
    • Short circuit protection
    • Reverse current protection
    • Overcharge protection
    • Transient overvoltage protection
    • Over-temperature protection
  • Shock-Resistant
    • 100% solid-state unit without fuses or fans.
  • Waterproof & Dustproof
    • IP65 ingress protection rating.
  • Suitable Battery Types

    • LiFePO4, Li-ion, AGM, Gel, Calcium, Wet
  • Rated Throughput

    • 30A
  • Ingress Protection

    • IP65
  • LCD Screen Display Modes

    • Volts, Amps, Amp Hours, Battery Type
  • Weight

    • 0.5kg
  • Self-consumption

    • <3mA
  • Operating Temperature

    • -40°C to 60°C
  • Storage Temperature

    • -40°C to 85°C
Pack Contents
  • 1x 30A 6-stage smart solar regulator

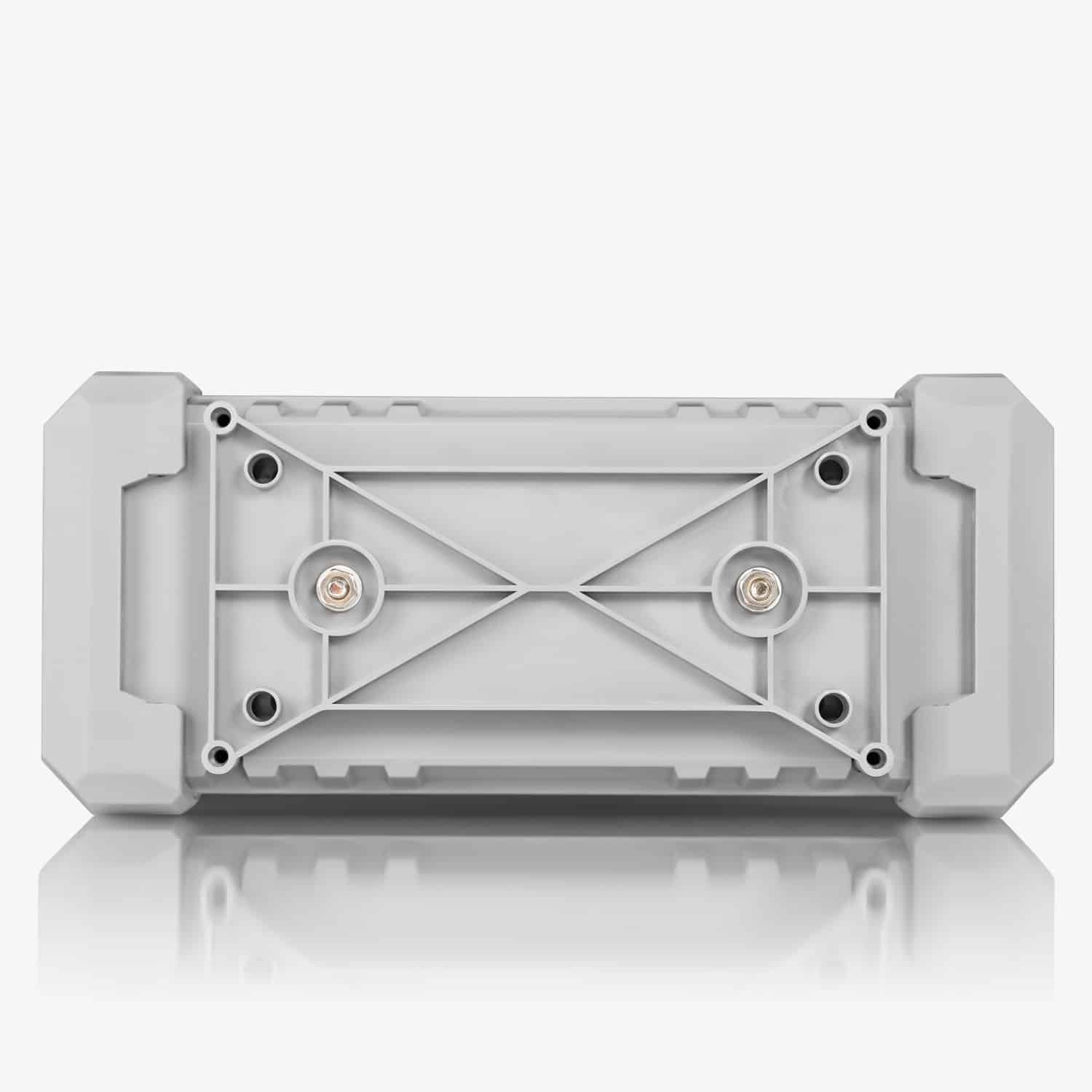

  • 1x Magnetic mounting plate & screws
Barcode # 9350466003062
Brand HardKorr
